Halos

Principle of Halos

大気の上空では気温は零度以下になっており, 大気中の水滴は氷の結晶となって浮かんでいます. この結晶の形にはいくつか種類がありますが, 正六角形の底面をもつ平板状の結晶と柱状の結晶が,その代表的な形になります.

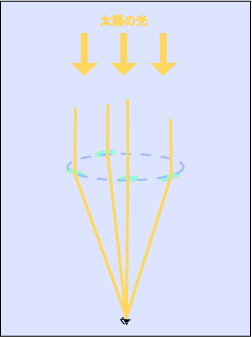

光がこの結晶に射し込むとき,結晶の表面では屈折が起こり, 氷の結晶はプリズムと同じようなはたらきをします. その結果,白色の光は虹と同じようにスペクトルに分かれます. このスペクトルが暈の正体です.
結晶に対して光がどの方向から入射するかによって, その経路は入射する光に対しておよそ22°と46°の方向に集中します. そのため,暈は二重に現れることになります.
The air temperature becomes under the freezing point in the high sky and drops of water in the air are frozen.
The most popular shapes of ice crystals are thin or tall hexagonal prism. Sunlight came into a crystal is refracted at the surface of it and two rainbow rings sometimes are produced. These are the halos.
A difference of an angle of incidence makes two sizes of halos, but the larger halo can not be seen often.
